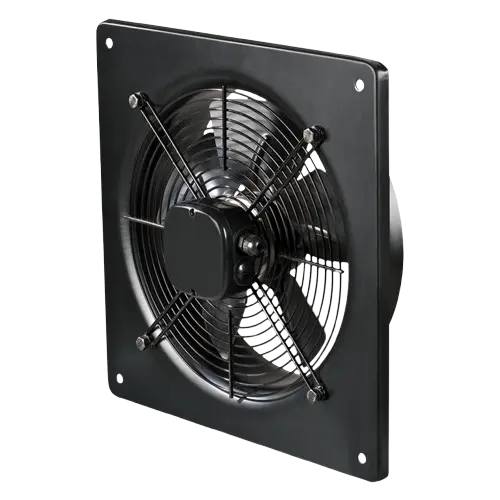

X200- 315 (Wall Axial Fan for Kitchen)

​Application

• Combined supply and exhaust ventilation systems for various premises where high air flow at relatively low system resistance is required.
• These fans can be used for the direct air exhaust or pressurization in smoke ventilation systems.

• These fans are suitable for outdoor wall mounting.

Design

1. The fan casing and the impeller are made of steel with polymeric coating.

2. x 200-315 fan terminal box is equipped with the cord for remote connection.

Mounting

1. The fan is mounted directly into the ventilation shaft.

2. In case of remote location of the ventilation shaft flexible air ducts may be used. The air duct is connected to the fan exhaust flange through a clamp.

3. Fixed to the wall by means of screws.

4. Suitable for ceiling mounting.

5. To connect a fan with a 12 V low voltage motor to 220 V/50 Hz power mains, it is necessary to purchase a step-down transformer (e.g. the TRF 220/12-25 transformer).

Motor

1. The impellers are powered by two-, four- or six pole, single or three phase asynchronous motors with external rotor and built-in thermal overheating protection depending on the model.
2. Ball bearings in the motor provide long service life designed for at least 40 000 hours.
3. Motor protection rating IP44-IP54.


Speed Control

1. Both smooth or step speed control is performed by means of the thyristor or autotransformer controller.
2. Several fans can be connected to one controller if the total power and operating current do not exceed the rated controller values.
