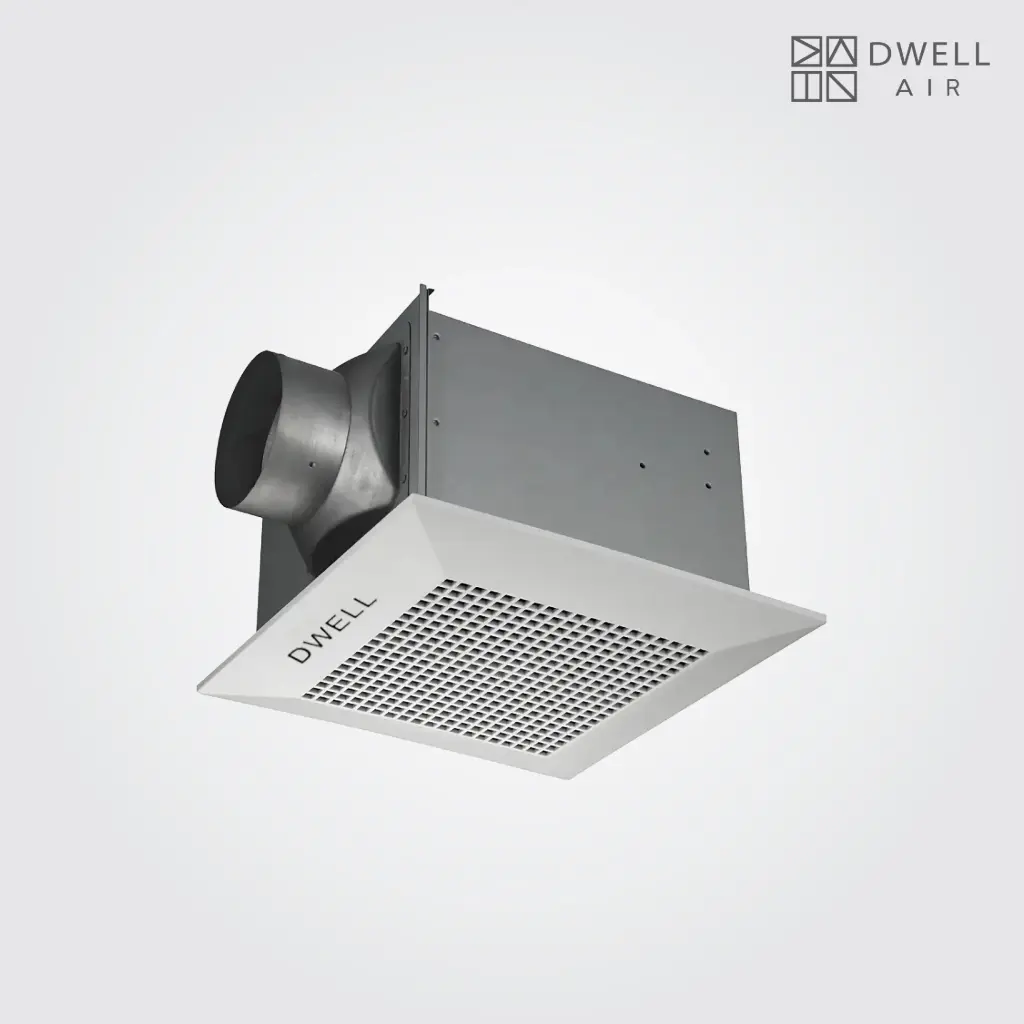

Dwell DCLF 100 Cassette Type Ceiling Exhaust Fan
DCLF Low-Profile Ceiling Ventilation Fan – Compact, Quiet & Reliable
- Powerful centrifugal airflow up to 90 m³/h with compact ceiling-mount design
- Optimized impeller ensures low-noise operation, ideal for quiet spaces
- Durable full-metal body with galvanized casing for long-term use
- Overheat protection and copper-wound motor for added safety and lifespan
- Easy ceiling installation in tight spaces (165–390 mm false ceiling gap)
- Integrated backdraft damper prevents air return for efficient performance
- Tool-free filter access for simple maintenance
Ideal for offices, homes, and commercial setups needing discreet, efficient ceiling-mounted exhaust.
Application:
DCLF Low-Profile Ceiling Ventilation Fan – Compact, Quiet & Reliable
- Powerful centrifugal airflow up to 156 m³/h with compact ceiling-mount design
- Optimized impeller ensures low-noise operation, ideal for quiet spaces
- Durable full-metal body with galvanized casing for long-term use
- Overheat protection and copper-wound motor for added safety and lifespan
- Easy ceiling installation in tight spaces (165–390 mm false ceiling gap)
- Integrated backdraft damper prevents air return for efficient performance
- Tool-free filter access for simple maintenance
Ideal for offices, homes, and commercial setups needing discreet, efficient ceiling-mounted exhaust.
The DCLF centrifugal fan is built for ceiling-mount applications in residential, commercial, and industrial environments. It is compatible with Ø100 mm and Ø125 mm ducts and is designed to deliver strong, focused air extraction while operating quietly.
Its all-metal construction ensures durability, while the ABS front panel includes a quick-access filter for effortless maintenance. A spring-loaded backdraft damper prevents unwanted return air. The centrifugal impeller is dynamically balanced for low-noise, stable performance. The copper-wound motor offers overheat protection and a lifespan exceeding 40,000 hours.
With flexible installation brackets and support for external speed control, the DCLF fan combines performance and convenience in one efficient package.
| Model | DCLF 100 |
| A | 270 |
| B | 125 |
| C | 197 |
| D | 98 |
| Hold size (mm) | 237 x 237 |
Applicable Area (m2) | 12 ~ 16 |
Application
1. Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces.
2. Ventilation shaft mounting or duct connection.
3. Low to medium air flow motion for short distances at low air resistance.
4. Compatible with Ø 100-, 120-, 125- and 150-mm air ducts
Design
1. Modern design and aesthetic look.
2. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.
3. Various decorative plates for the front panel of the natural aluminum.
4. The intellectual impeller design makes the fan efficiency high and the service lifelong.
5. Protection rating IP34.
Mounting
1. The fan is mounted directly into the ventilation shaft.
2. In case of remote location of the ventilation shaft flexible air ducts may be used. The air duct is connected to the fan exhaust flange through a clamp.
3. Fixed to the wall by means of screws.
4. Suitable for ceiling mounting.
5. To connect a fan with a 12 V low voltage motor to 220 V/50 Hz power mains, it is necessary to purchase a step-down transformer (e.g. the TRF 220/12-25 transformer)
Motor
1. Reliable and low-watt electric motor.
2. Designed for continuous operation and requires no maintenance.
3. Equipped with overheating protection.
Speed Control
Manual:
1. The fan is controlled by a room light switch. It is not included in the delivery set.
2. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting.
3. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may be connected to the same controller. Speed controllers can not be connected to the fans with Т, ТН, ТР, VТ, VТН modifications.
Automatic:
1. By the BU-1-60 electronic control unit. The control unit is supplied separately.
2. By the T timer (the built-in turn-off delay timer enables the fan operation within 2 to 30 minutes after the fan switching off).
3. By the humidity sensor and the TH timer (if the humidity level in the room exceeds the sensor threshold adjustable value within 60-90 % the fan switches automatically on and operates until the humidity level drops to the standard level, after that the fan continues operating within the time period according to the timer setting, then shuts down).
Parameter | Value |
Ø D | 100mm |
B | 152mm |
H | 120mm |
L | 126mm |
L1 | 130mm |
Application
1. Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces.
2. Ventilation shaft mounting or duct connection.
3. Low to medium air flow motion for short distances at low air resistance.
4. Compatible with Ø 100-, 120-, 125- and 150-mm air ducts
Design
1. Modern design and aesthetic look.
2. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.
3. Various decorative plates for the front panel of the natural aluminum.
4. The intellectual impeller design makes the fan efficiency high and the service lifelong.
5. Protection rating IP34.
Mounting
1. The fan is mounted directly into the ventilation shaft.
2. In case of remote location of the ventilation shaft flexible air ducts may be used. The air duct is connected to the fan exhaust flange through a clamp.
3. Fixed to the wall by means of screws.
4. Suitable for ceiling mounting.
5. To connect a fan with a 12 V low voltage motor to 220 V/50 Hz power mains, it is necessary to purchase a step-down transformer (e.g. the TRF 220/12-25 transformer)
Motor
1. Reliable and low-watt electric motor.
2. Designed for continuous operation and requires no maintenance.
3. Equipped with overheating protection.
Speed Control
Manual:
1. The fan is controlled by a room light switch. It is not included in the delivery set.
2. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting.
3. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may be connected to the same controller. Speed controllers can not be connected to the fans with Т, ТН, ТР, VТ, VТН modifications.
Automatic:
1. By the BU-1-60 electronic control unit. The control unit is supplied separately.
2. By the T timer (the built-in turn-off delay timer enables the fan operation within 2 to 30 minutes after the fan switching off).
3. By the humidity sensor and the TH timer (if the humidity level in the room exceeds the sensor threshold adjustable value within 60-90 % the fan switches automatically on and operates until the humidity level drops to the standard level, after that the fan continues operating within the time period according to the timer setting, then shuts down).
Application
1. Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces.
2. Ventilation shaft mounting or duct connection.
3. Low to medium air flow motion for short distances at low air resistance.
4. Compatible with Ø 100-, 120-, 125- and 150-mm air ducts
Design
1. Modern design and aesthetic look.
2. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.
3. Various decorative plates for the front panel of the natural aluminum.
4. The intellectual impeller design makes the fan efficiency high and the service lifelong.
5. Protection rating IP34.
Mounting
1. The fan is mounted directly into the ventilation shaft.
2. In case of remote location of the ventilation shaft flexible air ducts may be used. The air duct is connected to the fan exhaust flange through a clamp.
3. Fixed to the wall by means of screws.
4. Suitable for ceiling mounting.
5. To connect a fan with a 12 V low voltage motor to 220 V/50 Hz power mains, it is necessary to purchase a step-down transformer (e.g. the TRF 220/12-25 transformer)
Motor
1. Reliable and low-watt electric motor.
2. Designed for continuous operation and requires no maintenance.
3. Equipped with overheating protection.
Speed Control
Manual:
1. The fan is controlled by a room light switch. It is not included in the delivery set.
2. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting.
3. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may be connected to the same controller. Speed controllers can not be connected to the fans with Т, ТН, ТР, VТ, VТН modifications.
Automatic:
1. By the BU-1-60 electronic control unit. The control unit is supplied separately.
2. By the T timer (the built-in turn-off delay timer enables the fan operation within 2 to 30 minutes after the fan switching off).
3. By the humidity sensor and the TH timer (if the humidity level in the room exceeds the sensor threshold adjustable value within 60-90 % the fan switches automatically on and operates until the humidity level drops to the standard level, after that the fan continues operating within the time period according to the timer setting, then shuts down).
Hidden in the ceiling. Built for real extraction.
Dwell DCLF 100 is a cassette-type ceiling centrifugal exhaust fan designed for bathrooms, toilets, and utility spaces where airflow must be strong, consistent, and completely hidden within the ceiling. It combines centrifugal performance with a clean architectural finish, making it ideal for premium residential and commercial interiors.
Centrifugal performance
Built to maintain airflow more effectively than a basic axial fan once duct length increases or bends are introduced.
NMB Japan Ball Bearing Motor
Delivers smooth operation, low noise, long operational life, and consistent daily performance.
True ceiling-integrated design
The cassette panel sits flush within the ceiling and keeps the visible space clean and architectural.
Built for humid spaces
Designed for bathrooms, toilets, and utility areas where odor removal and continuous exhaust performance matter.
Planning concealed ceiling ventilation for bathrooms or toilets?
Talk to Dwell Air for DCLF selection, duct design, and layout planning.
DCLF 100 is ideal for bathrooms, toilets, powder rooms, dressing areas, utility spaces, residential apartments, hotel bathrooms, and false-ceiling ventilation systems.
Ceiling-hidden extraction for cleaner interiors.
DCLF is designed for spaces where standard wall or visible ceiling fans feel intrusive or lose effectiveness once ducting becomes real.

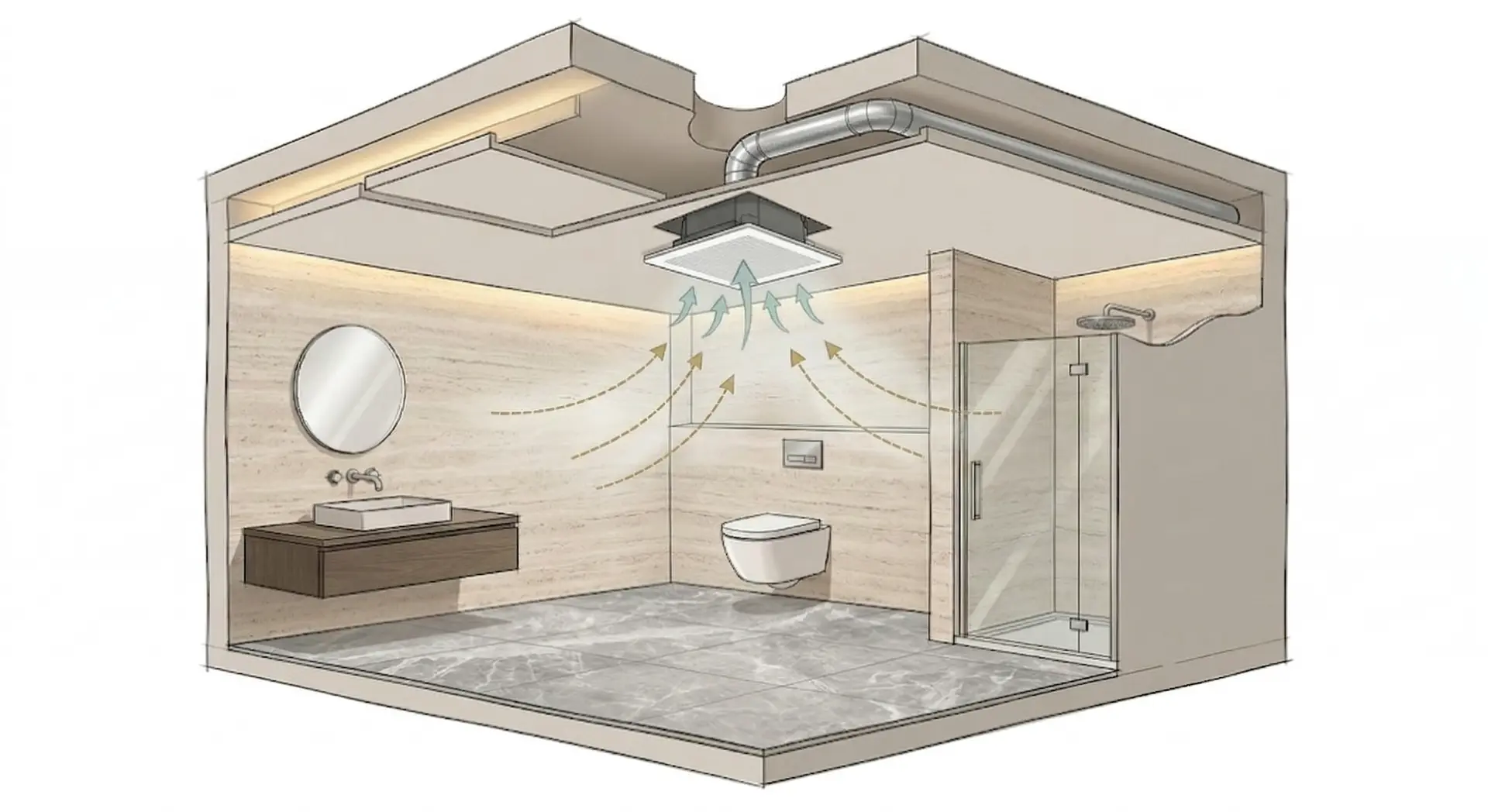

DCLF draws air from the room through the ceiling intake panel and moves it through a centrifugal impeller inside the unit. The air is then pushed into the connected duct system and exhausted outside or into a ventilation shaft. The centrifugal airflow helps maintain performance even when the duct path includes bends or moderate length.
Air enters through the ceiling intake panel
The visible surface remains minimal while room air is pulled directly into the concealed cassette unit.
The centrifugal impeller builds extraction pressure
Instead of relying on basic axial movement, DCLF uses centrifugal airflow to support stronger performance through ducting.
Air is pushed into the 100 mm duct route
The unit connects to ducted exhaust systems and continues moving air out through the planned route.
The ceiling stays clean while ventilation stays active
The system remains hidden above the false ceiling while extraction continues efficiently in daily use.
Actual selection data for DCLF 100 ceiling cassette exhaust planning.
Use the dimension image and actual planning values for panel, cutout, height, and duct coordination.
Core questions around performance, installation, and application fit.
Access product catalog, installation manual, and CAD file for DCLF 100.
DCLF product catalog
Product overview and technical presentation for the DCLF ceiling cassette centrifugal exhaust range.
Download catalogDCLF installation manual
Manual for setup, handling, and installation coordination of the DCLF cassette ceiling exhaust fan.
Download manualDCLF CAD file
Drawing file for false-ceiling coordination, duct planning, and installation detailing.
Open CAD fileHidden in the ceiling. Built for real extraction.
