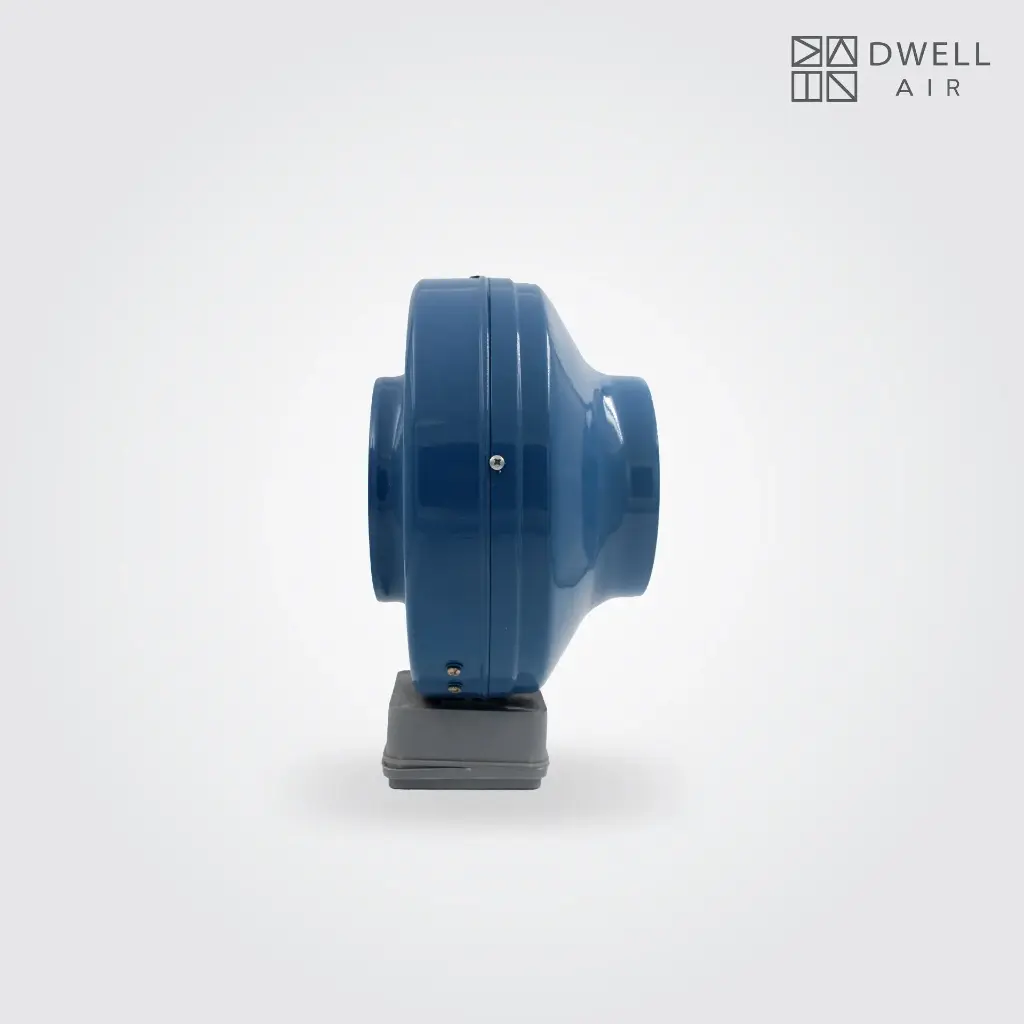

- Dwell DCIF Inline Centrifugal Duct Fan
Dwell DCIF Inline Centrifugal Duct Fan
http://www.dwellventilation.com/shop/dwell-dcif-150-inline-centrifugal-fan-dwell-dcif-inline-centrifugal-duct-fan-2693 http://www.dwellventilation.com/web/image/product.template/2693/image_1920?unique=6d59a2aDCIF Inline Centrifugal Fan – High-Efficiency Airflow from 250 to 1600 m³/h
- Reliable inline centrifugal fan designed for continuous ventilation
- Delivers high airflow from 250 to 1600 m³/h – ideal for larger spaces
- Quiet operation with backward-curved impeller for stable performance
- Robust galvanized steel body ensures long-lasting durability
- Motor with thermal protection, ball bearings, and 40,000+ hour lifespan
- Wall or ceiling mountable with adjustable installation brackets
- Compatible with external speed controllers for customizable performance
Perfect for commercial, office, and industrial spaces requiring strong, quiet, and flexible ventilation.
Terms and Conditions
1. No Returns
2. Standard Warranty 1 Year
3. Detailed T&C here.
4. By Purchasing you agree to T&C and return policy.
Heavy-Duty Metal Inline Centrifugal Fan Powered by German ebm-papst Motors
Engineered for the most demanding residential and commercial ducted ventilation projects, the Dwell DCIF combines an ultra-rugged galvanized steel casing with genuine German ebm-papst external rotor motor technology. Delivering up to 1540 m³/h of high-efficiency airflow across duct runs up to 250 feet, it effortlessly drives multi-point bathroom extraction, residential kitchen general exhaust, and multi-floor vertical building risers with unmatched acoustic refinement and decade-long durability.
German ebm-papst Motor Core
Powered by world-renowned German ebm-papst external rotor technology. Precision dynamic balancing, ultra-low vibration, and high electrical efficiency rated for 40,000+ hours of continuous maintenance-free duty.
Heavy-Gauge Galvanized Steel Body
Premium metal inline fan construction. Heavy-gauge galvanized sheet steel provides fire resistance, superior acoustic dampening, and corrosion-free performance in humid shafts and kitchens.
High-Capacity Multi-Point Suction
One central fan ventilating multiple zones. Simultaneously evacuates moisture from separate shower, toilet, and vanity points in large master suites, or vents two bathrooms with zero suction drop.
Backward-Curved Centrifugal Impeller
Non-stalling aerodynamic metal turbine design. Delivers high velocity and static pressure to overcome duct friction up to 250 feet, multiple 90° bends, and vertical risers without grease choking.
Industrial-grade German motor engineering inside an airtight metal casing.
For installations where failure is not an option—such as high-end residential master suites, multi-point apartment ventilation, and commercial restaurant prep lines—the Dwell DCIF metal inline fan stands apart. By pairing heavy-gauge galvanized steel with a German-engineered ebm-papst external rotor motor, it delivers continuous, non-stalling extraction across long duct runs up to 250 feet.
Its backward-curved centrifugal blades actively resist dust and grease accumulation, ensuring steady airflow year after year. Designed for false ceiling mounting, it removes all mechanical vibration and hum from your living quarters, exhausting air quietly, smoothly, and efficiently.
- Powered by genuine German ebm-papst external rotor motor technology
- Rugged galvanized steel casing providing fire safety and acoustic dampening
- Duct reach up to 250 ft through multi-story vertical shafts and complex elbows
- Backward-curved centrifugal turbine resistant to grease and cooking fumes
- Rated for 40,000+ hours of continuous non-stop operation (-25°C to +55°C)
Need assistance selecting the right DCIF size?
Our technical team helps architects, MEP contractors, and homeowners calculate static pressure drops and select the optimal model for their space.
Built for Demanding Ducted Ventilation Layouts
High static pressure and German ebm-papst motor reliability engineered for residential suites and commercial buildings.

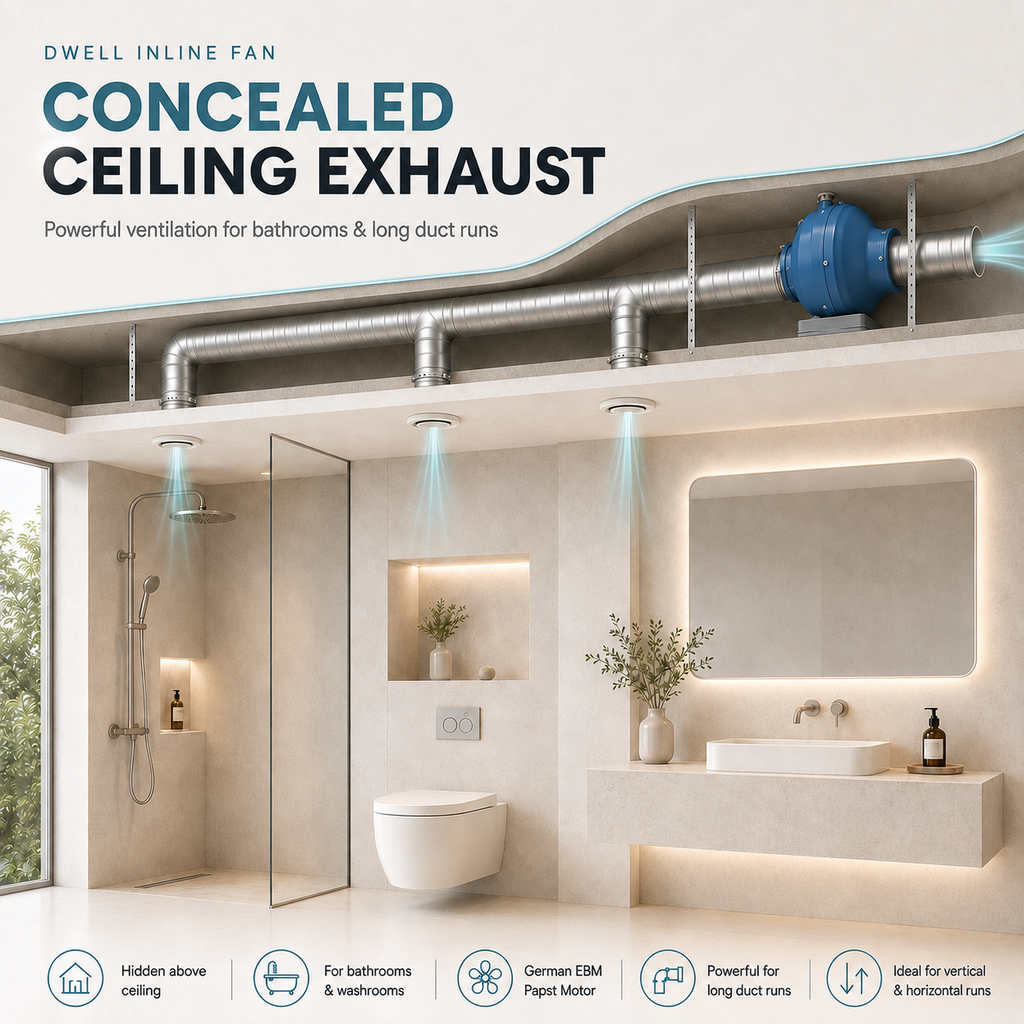

Multi-Point Master Bathrooms
Simultaneous extraction across separate zones. Pull air from your shower cubicle, bathtub area, and WC simultaneously using branch ducting connected to a single central DCIF fan.
Multi-Bathroom Shared Ventilation
One powerful fan serving two washrooms. Connect two adjacent bathrooms to a single DCIF 150 or DCIF 200 via a Y-splitter, maintaining strong suction across both grilles without cross-talk.
Residential Kitchen General Exhaust
Evacuating ambient cooking heat, steam, and aromas. Vents general cooking heat, boiling steam, and lingering food smells from modular open kitchens and enclosed pantry areas through long ceiling runs.
Multi-Story Vertical Building Risers
Driving exhaust upward to terrace terminations. Easily overcomes backpressure, downdrafts, and exterior wind resistance in apartment utility shafts where air must travel up to the roof.
High-Footfall Commercial Restrooms
Continuous 12 to 18 hour non-stop odor evacuation. Designed for corporate offices, diagnostic labs, and retail washrooms where external rotor motors run continuously without thermal degradation.
Enclosed Utility Balconies & Laundries
Extracting heavy dryer heat and washing machine moisture. Quickly evacuates damp humidity from enclosed washing machine nooks and basement utility rooms, preventing mold and wall dampness.
Backward-Curved Centrifugal Impeller Technology
The Dwell DCIF uses a dynamically balanced backward-curved turbine coupled with a German ebm-papst external rotor motor to maintain continuous airflow across long duct runs up to 250 feet.
Multi-Point Air Intake at Grilles
Discreet architectural ceiling grilles capture air directly above steam and odor sources. The motor is mounted inside the ceiling void, keeping mechanical hum completely outside your rooms.
German ebm-papst External Rotor Drive
The motor rotor spins around the stationary stator inside the impeller hub. This provides compact axial depth, perfect concentric balance, and natural airstream cooling across the motor casing.
Pressure Generation in Galvanized Casing
The backward-curved metal impeller flings air outward at high velocity, converting rotational energy into driving static pressure inside the airtight galvanized steel scroll.
High-Velocity Exhaust Up to 250 Feet
The pressurized air easily travels through flexible or rigid ducting, navigating multiple 90° bends, vertical risers, and exterior gravity louvers without choking.
Compare Technical Specifications by Model
All performance figures are verified single-speed operating data tested at 230 V / 50 Hz. Select a model below to compare airflow, electrical, and weight ratings.
| Nominal Duct Diameter | 100 mm (4") · 98 mm Spigot Ø |
|---|---|
| Airflow Capacity | 250 m³/h · 147.2 CFM |
| Noise Level @ 3m | 46 dB(A) |
| Input Power | 72 W |
| Operating Current | 0.32 A |
| Motor Speed | 2820 RPM |
| Total Weight | 3.2 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 125 mm (5") · 123 mm Spigot Ø |
|---|---|
| Airflow Capacity | 330 m³/h · 194.2 CFM |
| Noise Level @ 3m | 46 dB(A) |
| Input Power | 78 W |
| Operating Current | 0.34 A |
| Motor Speed | 2820 RPM |
| Total Weight | 3.15 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 150 mm (6") · 148 mm Spigot Ø |
|---|---|
| Airflow Capacity | 455 m³/h · 267.8 CFM |
| Noise Level @ 3m | 46 dB(A) |
| Input Power | 75 W |
| Operating Current | 0.33 A |
| Motor Speed | 2770 RPM |
| Total Weight | 3.8 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 200 mm (8") · 198 mm Spigot Ø |
|---|---|
| Airflow Capacity | 1000 m³/h · 588.6 CFM |
| Noise Level @ 3m | 50 dB(A) |
| Input Power | 157 W |
| Operating Current | 0.69 A |
| Motor Speed | 2740 RPM |
| Total Weight | 4.4 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 315 mm (12") · 313 mm Spigot Ø |
|---|---|
| Airflow Capacity | 1540 m³/h · 906.4 CFM |
| Noise Level @ 3m | 53 dB(A) |
| Input Power | 185 W |
| Operating Current | 0.81 A |
| Motor Speed | 2730 RPM |
| Total Weight | 5.7 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
Centrifugal Airflow Range
Consistent high-volume extraction across duct diameters up to 315 mm.
Casing Measurements & Mounting Clearances
Check spigot collar diameters, casing dimensions, and minimum void requirements before framing false ceilings or mounting brackets.
| Spigot Outer Diameter (D) | 98 mm (fits standard 100 mm / 4" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 237 mm |
| Casing Body Width (B) | 253 mm |
| Overall Width with Bracket (B1) | 293 mm |
| Total Body Length (L) | 202 mm |
| Recommended Ceiling Void | 260 mm minimum clearance |
| Spigot Outer Diameter (D) | 123 mm (fits standard 125 mm / 5" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 237 mm |
| Casing Body Width (B) | 253 mm |
| Overall Width with Bracket (B1) | 293 mm |
| Total Body Length (L) | 202 mm |
| Recommended Ceiling Void | 260 mm minimum clearance |
| Spigot Outer Diameter (D) | 148 mm (fits standard 150 mm / 6" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 278 mm |
| Casing Body Width (B) | 294 mm |
| Overall Width with Bracket (B1) | 334 mm |
| Total Body Length (L) | 200 mm |
| Recommended Ceiling Void | 290 mm minimum clearance |
| Spigot Outer Diameter (D) | 198 mm (fits standard 200 mm / 8" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 332 mm |
| Casing Body Width (B) | 340 mm |
| Overall Width with Bracket (B1) | 380 mm |
| Total Body Length (L) | 245 mm |
| Recommended Ceiling Void | 350 mm minimum clearance |
| Spigot Outer Diameter (D) | 313 mm (fits standard 315 mm / 12" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 402 mm |
| Casing Body Width (B) | 410 mm |
| Overall Width with Bracket (B1) | 450 mm |
| Total Body Length (L) | 308 mm |
| Recommended Ceiling Void | 420 mm minimum clearance |
Common Questions About Dwell DCIF
Clear, factual answers on sizing, acoustics, German ebm-papst motor engineering, and ceiling maintenance.
What makes the German ebm-papst motor in the DCIF special?
ebm-papst is the world leader in ventilation motor technology. The external rotor motor in the Dwell DCIF features precision dynamic balancing, high electrical efficiency, and ultra-durable ball bearings rated for 40,000+ hours of continuous duty. It runs with remarkably low vibration and maintains steady airflow across extreme duct lengths.
Can one DCIF fan ventilate multiple bathrooms or multiple points in one bathroom?
Yes. This is one of the biggest advantages of DCIF. Because its centrifugal impeller develops massive static pressure, you can run branch ducting from a single DCIF 150 or 200 to pull air simultaneously from a shower enclosure and a WC, or from two separate adjacent washrooms. Sizing the fan correctly ensures strong, balanced suction at every grille.
Why is a galvanized steel metal casing better for ducted ventilation?
Galvanized steel offers superior rigidity, fire resistance, and dimensional stability. It withstands warm cooking exhaust, resists building settling vibrations, and does not crack or degrade in dark, humid service shafts. It also provides excellent acoustic dampening against low-frequency motor hum.
How far can the DCIF push exhaust air?
The DCIF is engineered to maintain active air velocity across duct runs up to 250 feet, overcoming the resistance of internal duct friction, multiple 90° elbows, flexible duct corrugations, and exterior gravity louvers.
Does the fan require an external speed controller?
No. Dwell recommends selecting the exact fan model that matches your room volume and duct layout so the fan operates at its peak aerodynamic efficiency on a standard single-speed switch. This eliminates unnecessary controller costs, humming motor noise from low-cost triac dimmers, and complex electrical wiring.
How do I maintain the fan once the false ceiling is closed?
Always install a standard 300 × 300 mm access panel in the false ceiling directly beneath the fan. The fan external rotor motor and backward-curved impeller naturally resist dust and grease accumulation. During routine annual maintenance, open the inspection hatch and wipe down the impeller blades without dismantling the duct connections.
Certificates, Manuals & CAD Drawings
Access certified user manuals, dimensional drawings, and CAD blocks to integrate Dwell DCIF directly into your architectural layouts and MEP schematics.
Product Specification Brochure
Consolidated aerodynamic curves, acoustic ratings, electrical data, and dimensional tables across all 5 sizes.
Download Brochure (PDF)Installation Manual
Wiring schematics, mounting bracket dimensions, electrical connection protocols, and safety guidelines.
Download Manual (PDF)Need duct resistance calculations or assistance with multi-point layouts?
Connect with our technical ventilation desk for sizing calculations, multi-unit project pricing, or CAD duct layouts.
Heavy-Duty Metal Inline Centrifugal Fan Powered by German ebm-papst Motors
Engineered for the most demanding residential and commercial ducted ventilation projects, the Dwell DCIF combines an ultra-rugged galvanized steel casing with genuine German ebm-papst external rotor motor technology. Delivering up to 1540 m³/h of high-efficiency airflow across duct runs up to 250 feet, it effortlessly drives multi-point bathroom extraction, residential kitchen general exhaust, and multi-floor vertical building risers with unmatched acoustic refinement and decade-long durability.
German ebm-papst Motor Core
Powered by world-renowned German ebm-papst external rotor technology. Precision dynamic balancing, ultra-low vibration, and high electrical efficiency rated for 40,000+ hours of continuous maintenance-free duty.
Heavy-Gauge Galvanized Steel Body
Premium metal inline fan construction. Heavy-gauge galvanized sheet steel provides fire resistance, superior acoustic dampening, and corrosion-free performance in humid shafts and kitchens.
High-Capacity Multi-Point Suction
One central fan ventilating multiple zones. Simultaneously evacuates moisture from separate shower, toilet, and vanity points in large master suites, or vents two bathrooms with zero suction drop.
Backward-Curved Centrifugal Impeller
Non-stalling aerodynamic metal turbine design. Delivers high velocity and static pressure to overcome duct friction up to 250 feet, multiple 90° bends, and vertical risers without grease choking.
Industrial-grade German motor engineering inside an airtight metal casing.
For installations where failure is not an option—such as high-end residential master suites, multi-point apartment ventilation, and commercial restaurant prep lines—the Dwell DCIF metal inline fan stands apart. By pairing heavy-gauge galvanized steel with a German-engineered ebm-papst external rotor motor, it delivers continuous, non-stalling extraction across long duct runs up to 250 feet.
Its backward-curved centrifugal blades actively resist dust and grease accumulation, ensuring steady airflow year after year. Designed for false ceiling mounting, it removes all mechanical vibration and hum from your living quarters, exhausting air quietly, smoothly, and efficiently.
- Powered by genuine German ebm-papst external rotor motor technology
- Rugged galvanized steel casing providing fire safety and acoustic dampening
- Duct reach up to 250 ft through multi-story vertical shafts and complex elbows
- Backward-curved centrifugal turbine resistant to grease and cooking fumes
- Rated for 40,000+ hours of continuous non-stop operation (-25°C to +55°C)
Need assistance selecting the right DCIF size?
Our technical team helps architects, MEP contractors, and homeowners calculate static pressure drops and select the optimal model for their space.
Built for Demanding Ducted Ventilation Layouts
High static pressure and German ebm-papst motor reliability engineered for residential suites and commercial buildings.
Multi-Point Master Bathrooms
Simultaneous extraction across separate zones. Pull air from your shower cubicle, bathtub area, and WC simultaneously using branch ducting connected to a single central DCIF fan.
Multi-Bathroom Shared Ventilation
One powerful fan serving two washrooms. Connect two adjacent bathrooms to a single DCIF 150 or DCIF 200 via a Y-splitter, maintaining strong suction across both grilles without cross-talk.
Residential Kitchen General Exhaust
Evacuating ambient cooking heat, steam, and aromas. Vents general cooking heat, boiling steam, and lingering food smells from modular open kitchens and enclosed pantry areas through long ceiling runs.
Multi-Story Vertical Building Risers
Driving exhaust upward to terrace terminations. Easily overcomes backpressure, downdrafts, and exterior wind resistance in apartment utility shafts where air must travel up to the roof.
High-Footfall Commercial Restrooms
Continuous 12 to 18 hour non-stop odor evacuation. Designed for corporate offices, diagnostic labs, and retail washrooms where external rotor motors run continuously without thermal degradation.
Enclosed Utility Balconies & Laundries
Extracting heavy dryer heat and washing machine moisture. Quickly evacuates damp humidity from enclosed washing machine nooks and basement utility rooms, preventing mold and wall dampness.
Backward-Curved Centrifugal Impeller Technology
The Dwell DCIF uses a dynamically balanced backward-curved turbine coupled with a German ebm-papst external rotor motor to maintain continuous airflow across long duct runs up to 250 feet.
Multi-Point Air Intake at Grilles
Discreet architectural ceiling grilles capture air directly above steam and odor sources. The motor is mounted inside the ceiling void, keeping mechanical hum completely outside your rooms.
German ebm-papst External Rotor Drive
The motor rotor spins around the stationary stator inside the impeller hub. This provides compact axial depth, perfect concentric balance, and natural airstream cooling across the motor casing.
Pressure Generation in Galvanized Casing
The backward-curved metal impeller flings air outward at high velocity, converting rotational energy into driving static pressure inside the airtight galvanized steel scroll.
High-Velocity Exhaust Up to 250 Feet
The pressurized air easily travels through flexible or rigid ducting, navigating multiple 90° bends, vertical risers, and exterior gravity louvers without choking.
Compare Technical Specifications by Model
All performance figures are verified single-speed operating data tested at 230 V / 50 Hz. Select a model below to compare airflow, electrical, and weight ratings.
| Nominal Duct Diameter | 100 mm (4") · 98 mm Spigot Ø |
|---|---|
| Airflow Capacity | 250 m³/h · 147.2 CFM |
| Noise Level @ 3m | 46 dB(A) |
| Input Power | 72 W |
| Operating Current | 0.32 A |
| Motor Speed | 2820 RPM |
| Total Weight | 3.2 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 125 mm (5") · 123 mm Spigot Ø |
|---|---|
| Airflow Capacity | 330 m³/h · 194.2 CFM |
| Noise Level @ 3m | 46 dB(A) |
| Input Power | 78 W |
| Operating Current | 0.34 A |
| Motor Speed | 2820 RPM |
| Total Weight | 3.15 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 150 mm (6") · 148 mm Spigot Ø |
|---|---|
| Airflow Capacity | 455 m³/h · 267.8 CFM |
| Noise Level @ 3m | 46 dB(A) |
| Input Power | 75 W |
| Operating Current | 0.33 A |
| Motor Speed | 2770 RPM |
| Total Weight | 3.8 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 200 mm (8") · 198 mm Spigot Ø |
|---|---|
| Airflow Capacity | 1000 m³/h · 588.6 CFM |
| Noise Level @ 3m | 50 dB(A) |
| Input Power | 157 W |
| Operating Current | 0.69 A |
| Motor Speed | 2740 RPM |
| Total Weight | 4.4 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
| Nominal Duct Diameter | 315 mm (12") · 313 mm Spigot Ø |
|---|---|
| Airflow Capacity | 1540 m³/h · 906.4 CFM |
| Noise Level @ 3m | 53 dB(A) |
| Input Power | 185 W |
| Operating Current | 0.81 A |
| Motor Speed | 2730 RPM |
| Total Weight | 5.7 kg |
| Power Supply | 230 V / 50 Hz, Single Phase |
| Motor Protection | IPX4 / IP44 |
| Motor Technology | German ebm-papst External Rotor |
| Operating Temp. Range | -25°C to +55°C |
| Casing Material | Heavy-Duty Galvanized Sheet Steel |
Centrifugal Airflow Range
Consistent high-volume extraction across duct diameters up to 315 mm.
Casing Measurements & Mounting Clearances
Check spigot collar diameters, casing dimensions, and minimum void requirements before framing false ceilings or mounting brackets.
| Spigot Outer Diameter (D) | 98 mm (fits standard 100 mm / 4" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 237 mm |
| Casing Body Width (B) | 253 mm |
| Overall Width with Bracket (B1) | 293 mm |
| Total Body Length (L) | 202 mm |
| Recommended Ceiling Void | 260 mm minimum clearance |
| Spigot Outer Diameter (D) | 123 mm (fits standard 125 mm / 5" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 237 mm |
| Casing Body Width (B) | 253 mm |
| Overall Width with Bracket (B1) | 293 mm |
| Total Body Length (L) | 202 mm |
| Recommended Ceiling Void | 260 mm minimum clearance |
| Spigot Outer Diameter (D) | 148 mm (fits standard 150 mm / 6" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 278 mm |
| Casing Body Width (B) | 294 mm |
| Overall Width with Bracket (B1) | 334 mm |
| Total Body Length (L) | 200 mm |
| Recommended Ceiling Void | 290 mm minimum clearance |
| Spigot Outer Diameter (D) | 198 mm (fits standard 200 mm / 8" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 332 mm |
| Casing Body Width (B) | 340 mm |
| Overall Width with Bracket (B1) | 380 mm |
| Total Body Length (L) | 245 mm |
| Recommended Ceiling Void | 350 mm minimum clearance |
| Spigot Outer Diameter (D) | 313 mm (fits standard 315 mm / 12" round duct) |
|---|---|
| Inner Flange Diameter (D1) | 402 mm |
| Casing Body Width (B) | 410 mm |
| Overall Width with Bracket (B1) | 450 mm |
| Total Body Length (L) | 308 mm |
| Recommended Ceiling Void | 420 mm minimum clearance |
Common Questions About Dwell DCIF
Clear, factual answers on sizing, acoustics, German ebm-papst motor engineering, and ceiling maintenance.
What makes the German ebm-papst motor in the DCIF special?
ebm-papst is the world leader in ventilation motor technology. The external rotor motor in the Dwell DCIF features precision dynamic balancing, high electrical efficiency, and ultra-durable ball bearings rated for 40,000+ hours of continuous duty. It runs with remarkably low vibration and maintains steady airflow across extreme duct lengths.
Can one DCIF fan ventilate multiple bathrooms or multiple points in one bathroom?
Yes. This is one of the biggest advantages of DCIF. Because its centrifugal impeller develops massive static pressure, you can run branch ducting from a single DCIF 150 or 200 to pull air simultaneously from a shower enclosure and a WC, or from two separate adjacent washrooms. Sizing the fan correctly ensures strong, balanced suction at every grille.
Why is a galvanized steel metal casing better for ducted ventilation?
Galvanized steel offers superior rigidity, fire resistance, and dimensional stability. It withstands warm cooking exhaust, resists building settling vibrations, and does not crack or degrade in dark, humid service shafts. It also provides excellent acoustic dampening against low-frequency motor hum.
How far can the DCIF push exhaust air?
The DCIF is engineered to maintain active air velocity across duct runs up to 250 feet, overcoming the resistance of internal duct friction, multiple 90° elbows, flexible duct corrugations, and exterior gravity louvers.
Does the fan require an external speed controller?
No. Dwell recommends selecting the exact fan model that matches your room volume and duct layout so the fan operates at its peak aerodynamic efficiency on a standard single-speed switch. This eliminates unnecessary controller costs, humming motor noise from low-cost triac dimmers, and complex electrical wiring.
How do I maintain the fan once the false ceiling is closed?
Always install a standard 300 × 300 mm access panel in the false ceiling directly beneath the fan. The fan external rotor motor and backward-curved impeller naturally resist dust and grease accumulation. During routine annual maintenance, open the inspection hatch and wipe down the impeller blades without dismantling the duct connections.
Certificates, Manuals & CAD Drawings
Access certified user manuals, dimensional drawings, and CAD blocks to integrate Dwell DCIF directly into your architectural layouts and MEP schematics.
Product Specification Brochure
Consolidated aerodynamic curves, acoustic ratings, electrical data, and dimensional tables across all 5 sizes.
Download Brochure (PDF)Installation Manual
Wiring schematics, mounting bracket dimensions, electrical connection protocols, and safety guidelines.
Download Manual (PDF)Need duct resistance calculations or assistance with multi-point layouts?
Connect with our technical ventilation desk for sizing calculations, multi-unit project pricing, or CAD duct layouts.
