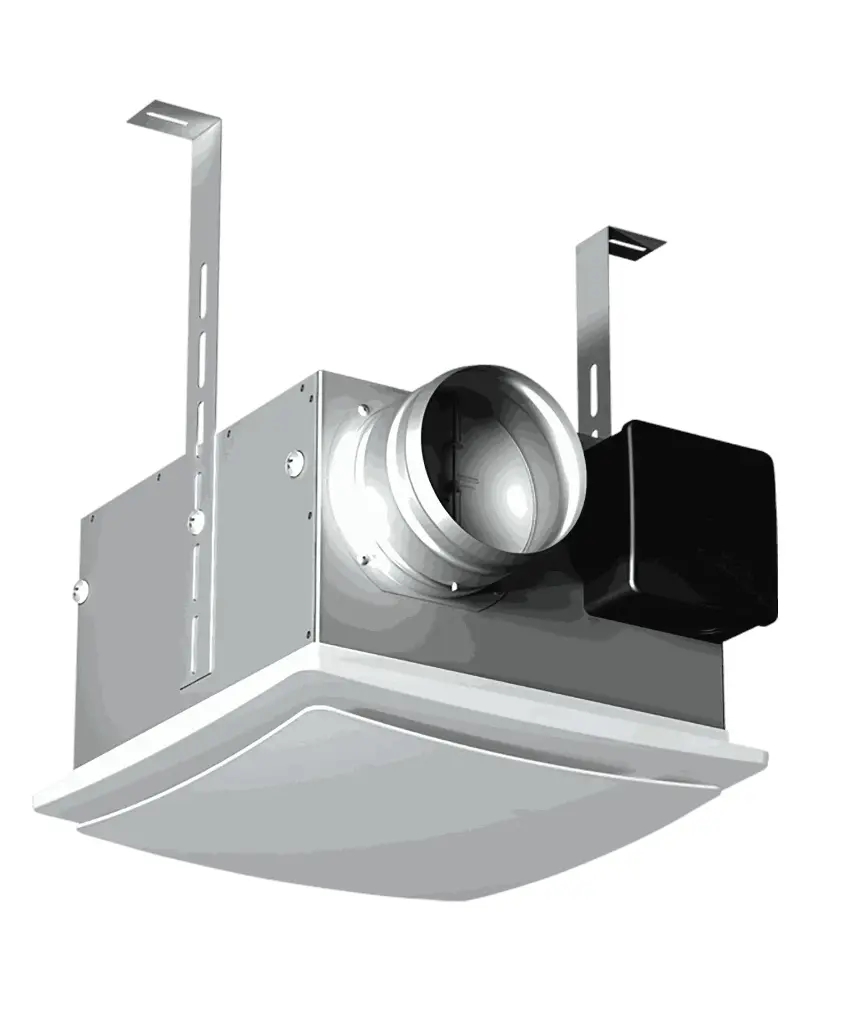

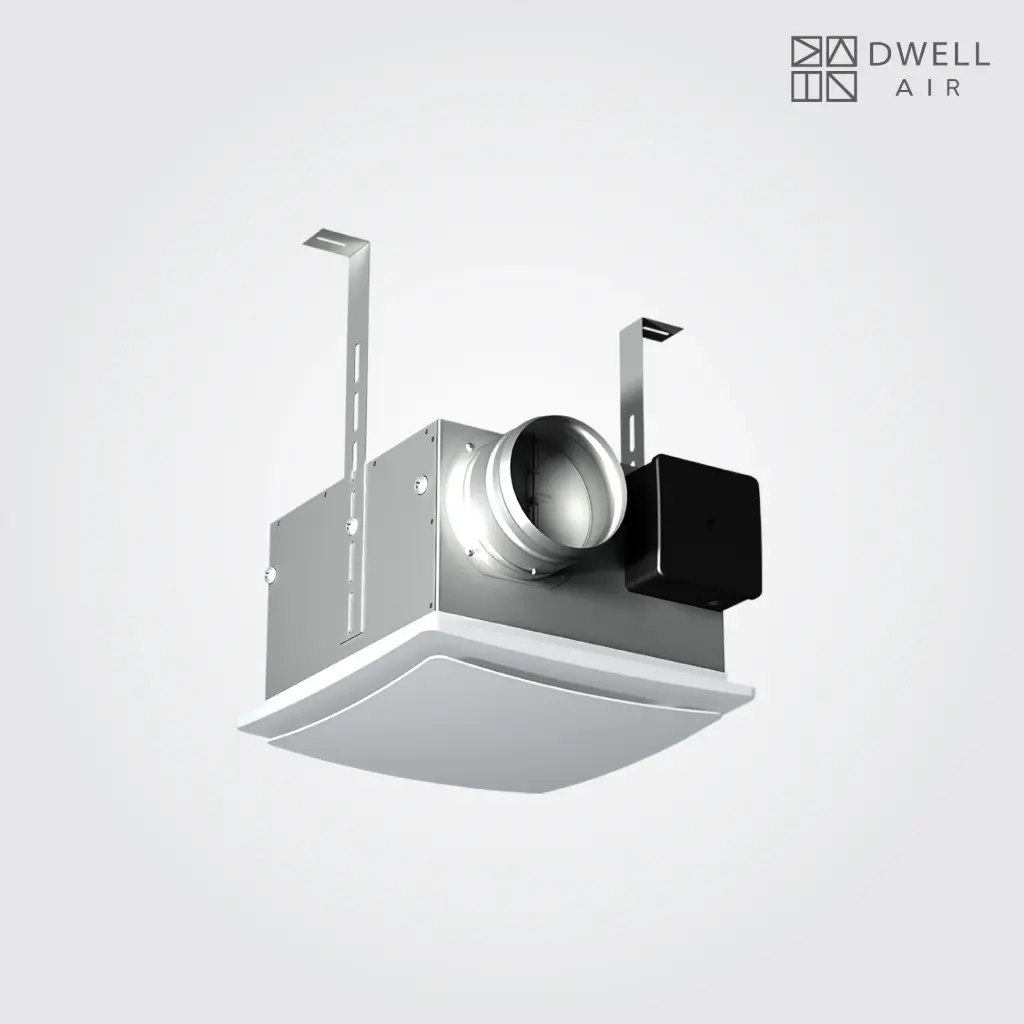

Dwell DCCF 100 PRO Cassette Type Ceiling Centrifugal Exhaust Fan
DCCF 100 Cassette-Type Centrifugal Fan – Ideal for Offices, Retail & Public Spaces- 190 m³/h, 47 dB, ABS & Steel, False Ceiling Compatible (4 Inch, 100mm)
- Powerful centrifugal airflow with low noise, perfect for high-traffic areas
- Compact cassette design fits discreetly into false ceilings
- Compatible with Ø100 mm and Ø125 mm ducts for easy connection
- Low-noise, high-speed airflow up to 190 m3/h for efficient daily ventilation.
- Reliable ventilation for spaces with limited ceiling height
- Engineered for continuous use in commercial and industrial settings
- Helps maintain clean air in offices, shops, and workspaces
- Keep your interiors fresh, quiet, and unobtrusively ventilated—without sacrificing space.
| Size: 4 Inch (100 mm) |
Application:
DCCF 100 Cassette-Type Centrifugal Fan – Ideal for Offices, Retail & Public Spaces
- Powerful centrifugal airflow with low noise, perfect for high-traffic areas
- Compact cassette design fits discreetly into false ceilings
- Compatible with Ø100 mm and Ø125 mm ducts for easy connection
- Reliable ventilation for spaces with limited ceiling height
- Engineered for continuous use in commercial and industrial settings
- Helps maintain clean air in offices, shops, and workspaces
Keep your interiors fresh, quiet, and unobtrusively ventilated—without sacrificing space.
Product Specification:
Power (W) | 61 |
Current (Amp.) | 0.26 |
Speed (RPM) | 2500 |
Noise (db) | 47 |
Max air Capacity (m3/h) | 190 |
Design
1. The fan casing is made of galvanized steel and the decorative front plate is made of ABS plastic and fitted with a filter.
2. The front plate structure ensures easy access to the filter without any tools.
3. The fan is equipped with a backdraft damper to prevent back air flow.
4. The damper blades are opened by air pressure generated by the fan and are closed with a spring.
Mounting
1. The fan is mounted between the floor framing and false ceiling with brackets.
2. The distance from the floor framing to the false ceiling may range from 165 mm to 390 mm.
3. The fan is connected to power mains through the external terminal block.
4. Electric connections and installation operations must be in compliance with installation guidelines and wiring diagram.
Motor
1. Single phase external rotor motor with a centrifugal impeller and backward curved blades.
2. The motor is equipped with built-in overheating protection with automatic restart.
3. The motor ball bearings ensure 40 000 hours service life.
4. For precise features, safe operation and low noise, each impeller is dynamically balanced while assembly.
5. Motor ingress protection rating IP 44.
Speed Control
1. Speed control is performed in smooth or step mode with a thyristor or autotransformer.
2. Several fans may be connected to one speed controller if the total fan power and current do not exceed the rated speed controller parameters.
| Parameter | Value (mm) |
Ø D | 100 |
B | 240 |
H | 160 |
H1 | 189 |
L1 | 305 |
Application
1. Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces.
2. Ventilation shaft mounting or duct connection.
3. Low to medium air flow motion for short distances at low air resistance.
4. Compatible with Ø 100-, 120-, 125- and 150-mm air ducts
Design
1. Modern design and aesthetic look.
2. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.
3. Various decorative plates for the front panel of the natural aluminum.
4. The intellectual impeller design makes the fan efficiency high and the service lifelong.
5. Protection rating IP34.
Mounting
1. The fan is mounted directly into the ventilation shaft.
2. In case of remote location of the ventilation shaft flexible air ducts may be used. The air duct is connected to the fan exhaust flange through a clamp.
3. Fixed to the wall by means of screws.
4. Suitable for ceiling mounting.
5. To connect a fan with a 12 V low voltage motor to 220 V/50 Hz power mains, it is necessary to purchase a step-down transformer (e.g. the TRF 220/12-25 transformer)
Motor
1. Reliable and low-watt electric motor.
2. Designed for continuous operation and requires no maintenance.
3. Equipped with overheating protection.
Speed Control
Manual:
1. The fan is controlled by a room light switch. It is not included in the delivery set.
2. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting.
3. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may be connected to the same controller. Speed controllers can not be connected to the fans with Т, ТН, ТР, VТ, VТН modifications.
Automatic:
1. By the BU-1-60 electronic control unit. The control unit is supplied separately.
2. By the T timer (the built-in turn-off delay timer enables the fan operation within 2 to 30 minutes after the fan switching off).
3. By the humidity sensor and the TH timer (if the humidity level in the room exceeds the sensor threshold adjustable value within 60-90 % the fan switches automatically on and operates until the humidity level drops to the standard level, after that the fan continues operating within the time period according to the timer setting, then shuts down).
