- Dwell Balance (DB 100-200)

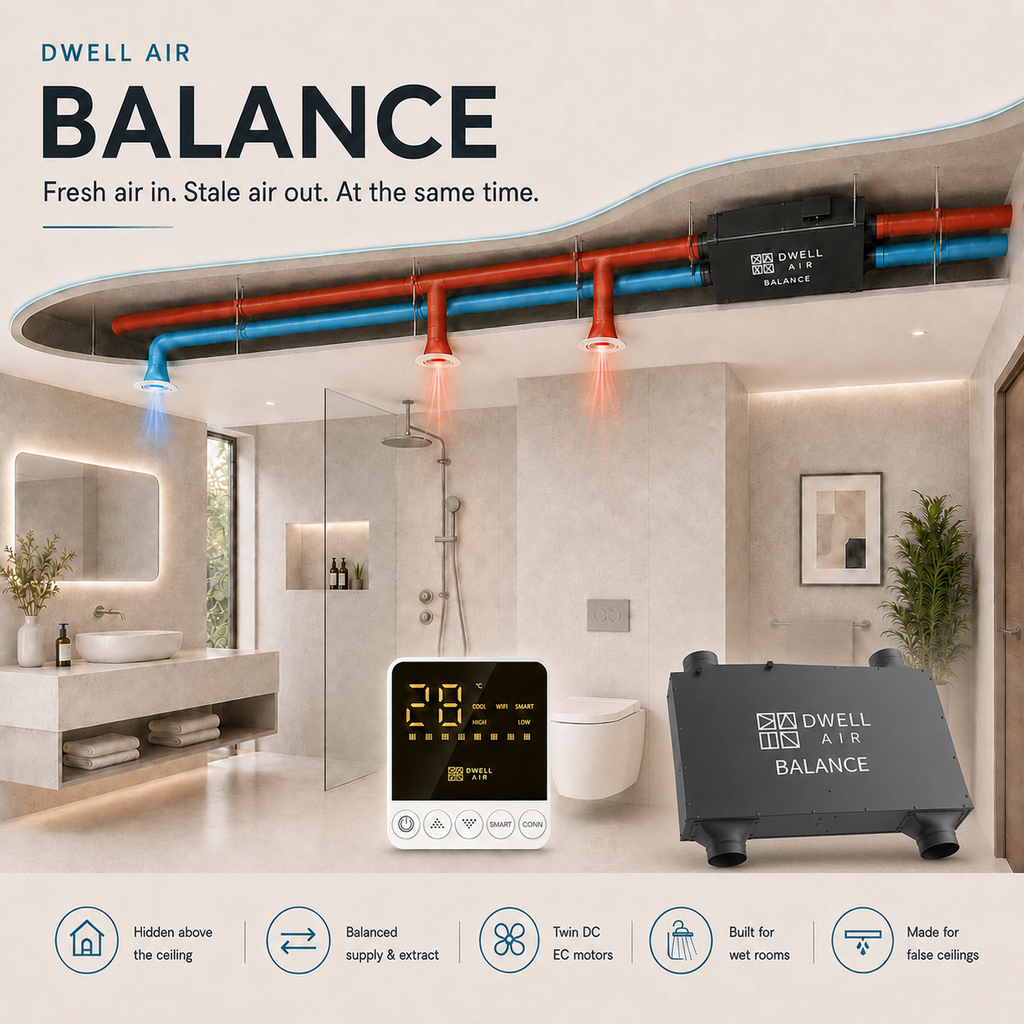

Dwell Balance (DB 100-200)
http://www.dwellventilation.com/shop/dwell-balance-db-100-200-3487 http://www.dwellventilation.com/web/image/product.template/3487/image_1920?unique=57aad1fDwell Balance Ceiling Integrated Two-Way Fresh Air Ventilator
- True Balanced Airflow: This single compact ceiling unit extracts stale, humid air and supplies filtered fresh air at the exact same time. It is India's first true balanced ventilation unit built specifically for the Indian bathrooms, wardrobes, and small rooms.
- Advanced Twin Motors: The system utilizes two independent DC EC centrifugal motors. These supply and extract speeds are perfectly matched to ensure your room never experiences negative pressure.
- Streamlined Installation: It completely replaces the need for two separate fans. This design requires only one ceiling cutout and uses four neatly paired ducts, eliminating competition for ceiling space.
- Smart Control & Filtration: Both motors are easily operated from a single control point, using either a 3-speed wall panel or a mobile app. Incoming air is kept clean thanks to a built-in, washable G4 pre-filter.
- Discreet & Durable: The unit is flush-mounted and silent, designed to completely disappear into your ceiling. It is built with a matte black galvanized steel body, features IP44 ingress protection for wet areas, and comes with a 1-year standard warranty.
Terms and Conditions
1. No Returns
2. Standard Warranty 1 Year
3. Detailed T&C here.
4. By Purchasing you agree to T&C and return policy.
India’s First Balanced Bathroom Ventilation Unit: Breathes Out, Breathes In Together
In the modern era of airtight construction with fixed aluminium and double-glazed windows, traditional exhaust fans only do half the job. When doors are closed, exhaust fans choke for lack of make-up air. When doors are open, they pull expensive conditioned air from your bedroom, sending electricity bills soaring. The Dwell BALANCE Series changes the equation: powered by twin synchronized DC centrifugal motors inside a single concealed ceiling cassette, it exhausts stale, humid air while simultaneously delivering purified, filtered outdoor fresh air—restoring perfect pressure equilibrium to your bathroom.
The Modern Window Dilemma
- The Choked Fan Phenomenon: With fixed aluminium windows and closed bathroom doors, exhaust fans pull against a vacuum, reducing air movement to near zero while doors stick shut.
- The Air Conditioning Penalty: If the door is left open for make-up air, the exhaust fan greedily sucks chilled air from your bedroom, overloading your air conditioner.
- Odor & Humidity Migration: Unbalanced pressure causes moisture and odors to whistle through gaps into adjoining walk-in wardrobes and hallways.
The Dwell BALANCE Solution
- Breathes Both Ways Simultaneously: Motor 1 pulls humid steam out while Motor 2 delivers filtered outdoor fresh air in, keeping room pressure perfectly balanced.
- Zero AC Load Penalty: Make-up air is sourced entirely from outside through dedicated ducting—your bedroom climate and air conditioning remain untouched.
- Purified Inflow: Outdoor air is stripped of dust, pollen, and PM2.5 particulates via a washable G4 pre-filter and high-efficiency HEPA filtration core.
Twin Synchronized DC Centrifugal Motors
Built with two dedicated, energy-efficient DC motors inside a single casing. Factory-tuned with an exhaust-led ratio (e.g. 230 m³/h extract vs. 180 m³/h supply on Balance 100), it maintains a slight controlled negative offset that prevents odors from escaping while ensuring smooth, continuous airflow.
Dual-Stage G4 Pre-Filter + HEPA Purification
Never pump raw outdoor pollution into your home. Incoming fresh air passes through a washable G4 coarse dust pre-filter and an integrated HEPA filter, trapping atmospheric dust, soot, and allergens before delivering purified air into your bathroom.
Sleek Wireless Touch Controller
Complete control without trenching bathroom marble. The included wireless digital controller features a sleek capacitive interface displaying real-time ambient temperature, WiFi connectivity, Smart automation, and 3-speed manual control.
Ultra-Slim Matte Black Ceiling Cassette
Engineered to disappear completely above the false ceiling. With casing heights as slim as 123 mm (Balance 100), it fits easily into shallow ceiling voids, replacing two separate machines, dual wiring, and cluttered ceiling cutouts with a single unified unit.
True Balanced Pressure Engineering
When a room cannot breathe in as fast as it breathes out, standard exhaust fans struggle against vacuum resistance. Dwell BALANCE synchronizes supply and exhaust volumes dynamically, eliminating door-sticking, gap-whistling, and unconditioned air backdrafts entirely.
Plan balanced ventilation for your property
Speak with our team about BALANCE ventilation for your space.
Where to Install the Dwell BALANCE Series
The Dwell BALANCE Series is the ideal ventilation core for residential and executive spaces built with modern fixed glass windows and sealed door systems.
Luxury Master En-Suite Bathrooms
Extracts shower steam from the wet enclosure while pumping fresh, tempered, and filtered air into the vanity area, keeping vanity mirrors fog-free and preventing humidity buildup.
Enclosed Walk-In Wardrobes & Dressing Suites
Continuous balanced ventilation prevents stagnant mustiness and moisture accumulation, protecting expensive designer clothing, leather accessories, and bespoke wooden millwork.
High-Rise Powder Rooms with Fixed Windows
In modern apartments with non-openable architectural facade windows, BALANCE provides independent fresh air intake and rapid odor clearance without needing window ventilators.
Executive Corporate Restrooms & VIP Lounges
Maintains superior indoor air quality and constant air replenishment for high-traffic office washrooms, private executive cabins, and boutique hospitality suites.
Find the right BALANCE model for your space
Get assistance selecting a model for your ventilation requirements.
How the 4-Duct Balanced Flow Operates
Dwell BALANCE integrates two independent centrifugal fan paths within an acoustically insulated galvanized steel chassis, connected to four dedicated duct collars.
Outdoor Fresh Intake
Draws clean, oxygen-rich outdoor air through an external weather louvre into the primary filter chamber.
Dual-Stage Purification
Incoming air passes through a washable G4 pre-filter and HEPA core, discharging purified fresh air into the room.
Targeted Stale Extraction
The exhaust blower pulls steam and stale air directly from high-humidity zones (shower cubicle and WC).
Exterior Discharge
Pressurized humid air is expelled outside through an independent exhaust duct with zero room backdraft.
Dwell BALANCE 4-Port Airflow Schematic
Discuss your balanced ventilation system
Talk with our team about supply, extraction, and duct planning.
Compare Technical Specifications by Model
All performance metrics are factory-tested at 220 V / 50 Hz. Select a model below to inspect detailed airflow, pressure, electrical, and dimensional ratings.
| Duct Spigots | 4 × Ø 100 mm (4" round ducts) |
|---|---|
| Exhaust Airflow (High / Low) | 230 m³/h (135.4 CFM) / 180 m³/h (106.0 CFM) |
| Fresh Air Supply (High / Low) | 180 m³/h (106.0 CFM) / 130 m³/h (76.5 CFM) |
| Exhaust Static Pressure | 210 Pa (High) / 110 Pa (Low) |
| Supply Static Pressure | 110 Pa |
| Acoustic Noise Level @ 3m | 30 dB(A) (Low) / 33 dB(A) (High) |
| Power Consumption (Hi / Lo) | 108 W / 86 W |
| Motors & Configuration | Twin DC Centrifugal Motors (Exhaust-led balanced design) |
| Filtration Stages | Dual Stage: Washable G4 Pre-Filter + HEPA Filter |
| User Interface | Sleek Wireless Touch Controller (Temperature, Smart, WiFi, 3-Speed) |
| Chassis & Finish | Heavy-Duty Galvanized Sheet Steel, Matte Black Finish (IP44) |
| Vertical Ceiling Void | Requires from 150 mm ceiling plenum clearance (Body Height 123 mm) |
| Net Unit Weight | 17.9 kg |
| Duct Spigots | 4 × Ø 150 mm (6" round ducts) |
|---|---|
| Exhaust Airflow (High / Low) | 550 m³/h (323.7 CFM) / 350 m³/h (206.0 CFM) |
| Fresh Air Supply (High / Low) | 350 m³/h (206.0 CFM) / 240 m³/h (141.3 CFM) |
| Exhaust Static Pressure | 240 Pa (High) / 160 Pa (Low) |
| Supply Static Pressure | 160 Pa |
| Acoustic Noise Level @ 3m | 33 dB(A) (Low) / 36 dB(A) (High) |
| Power Consumption (Hi / Lo) | 151 W / 124 W |
| Motors & Configuration | Twin DC Centrifugal Motors (Exhaust-led balanced design) |
| Filtration Stages | Dual Stage: Washable G4 Pre-Filter + HEPA Filter |
| User Interface | Sleek Wireless Touch Controller (Temperature, Smart, WiFi, 3-Speed) |
| Chassis & Finish | Heavy-Duty Galvanized Sheet Steel, Matte Black Finish (IP44) |
| Vertical Ceiling Void | Requires from 220 mm ceiling plenum clearance (Body Height 197 mm) |
| Net Unit Weight | 20.3 kg |
| Duct Spigots | 4 × Ø 200 mm (8" round ducts) |
|---|---|
| Exhaust Airflow (High / Low) | 1,200 m³/h (706.3 CFM) / 800 m³/h (470.9 CFM) |
| Fresh Air Supply (High / Low) | 800 m³/h (470.9 CFM) / 550 m³/h (323.7 CFM) |
| Exhaust Static Pressure | 320 Pa (High) / 270 Pa (Low) |
| Supply Static Pressure | 270 Pa |
| Acoustic Noise Level @ 3m | 41 dB(A) (Low) / 45 dB(A) (High) |
| Power Consumption (Hi / Lo) | 240 W / 186 W |
| Motors & Configuration | Twin DC Centrifugal Motors (Exhaust-led balanced design) |
| Filtration Stages | Dual Stage: Washable G4 Pre-Filter + HEPA Filter |
| User Interface | Sleek Wireless Touch Controller (Temperature, Smart, WiFi, 3-Speed) |
| Chassis & Finish | Heavy-Duty Galvanized Sheet Steel, Matte Black Finish (IP44) |
| Vertical Ceiling Void | Requires from 270 mm ceiling plenum clearance (Body Height 247 mm) |
| Net Unit Weight | 24.5 kg |
Dwell BALANCE Master Range Comparison (High-Speed Baseline)
| Model | Spigots | Exhaust Airflow | Supply Airflow | Static Pressure | Noise @ 3m | Power | Net Weight |
|---|---|---|---|---|---|---|---|
| BALANCE 100 | 4 × Ø 100 mm | 230 m³/h (135 CFM) | 180 m³/h (106 CFM) | 210 Pa | 30–33 dB(A) | 108 W | 17.9 kg |
| BALANCE 150 | 4 × Ø 150 mm | 550 m³/h (324 CFM) | 350 m³/h (206 CFM) | 240 Pa | 33–36 dB(A) | 151 W | 20.3 kg |
| BALANCE 200 | 4 × Ø 200 mm | 1,200 m³/h (706 CFM) | 800 m³/h (471 CFM) | 320 Pa | 41–45 dB(A) | 240 W | 24.5 kg |
Need help choosing a BALANCE model?
Our team can assist with airflow requirements and model selection.
Casing Dimensions & Mounting Footprint
Verify unit dimensions, mounting bracket bolt centers, and ceiling void heights prior to false ceiling framing.
| Overall Body Length (L) | 875 mm |
|---|---|
| Bracket Center Pitch (L1) | 845 mm (M8 drop rod bolts) |
| Overall Chassis Width (W) | 703 mm |
| Core Width between Spigots (W1) | 420 mm |
| Unit Height (H) | 123 mm (Ultra-slim profile) |
| Collar Height (H1) | 93 mm |
| Spigot Spacing Center-to-Center (D) | 583 mm |
| Duct Spigot Outer Diameter (G) | Ø 100 mm (4") |
| Minimum False Ceiling Clearance | from 150 mm vertical plenum depth |
| Overall Body Length (L) | 875 mm |
|---|---|
| Bracket Center Pitch (L1) | 845 mm (M8 drop rod bolts) |
| Overall Chassis Width (W) | 673 mm |
| Core Width between Spigots (W1) | 420 mm |
| Unit Height (H) | 197 mm |
| Collar Height (H1) | 167 mm |
| Spigot Spacing Center-to-Center (D) | 583 mm |
| Duct Spigot Outer Diameter (G) | Ø 150 mm (6") |
| Minimum False Ceiling Clearance | from 220 mm vertical plenum depth |
| Overall Body Length (L) | 875 mm |
|---|---|
| Bracket Center Pitch (L1) | 845 mm (M8 drop rod bolts) |
| Overall Chassis Width (W) | 700 mm |
| Core Width between Spigots (W1) | 420 mm |
| Unit Height (H) | 247 mm |
| Collar Height (H1) | 217 mm |
| Spigot Spacing Center-to-Center (D) | 544 mm |
| Duct Spigot Outer Diameter (G) | Ø 200 mm (8") |
| Minimum False Ceiling Clearance | from 270 mm vertical plenum depth |
Casing Measurements Matrix (All Dimensions in mm)
| Model | Length (L) | Pitch (L1) | Width (W) | Core (W1) | Height (H) | Collar (H1) | Spigot (D) | Duct (Ø) |
|---|---|---|---|---|---|---|---|---|
| BALANCE 100 | 875 mm | 845 mm | 703 mm | 420 mm | 123 mm | 93 mm | 583 mm | Ø 100 mm |
| BALANCE 150 | 875 mm | 845 mm | 673 mm | 420 mm | 197 mm | 167 mm | 583 mm | Ø 150 mm |
| BALANCE 200 | 875 mm | 845 mm | 700 mm | 420 mm | 247 mm | 217 mm | 544 mm | Ø 200 mm |
Ceiling Slab Suspension & Dimension Callouts
Coordinate BALANCE with your installation
Get assistance with installation space, duct connections, and maintenance access.
Frequently Asked Questions
Clear engineering explanations on make-up air, bedroom air conditioning loads, filter maintenance, and controller operation.
Why doesn't a standard exhaust fan work properly in modern bathrooms?
How does Dwell BALANCE save air conditioning and heating costs?
Will bathroom odors drift into the bedroom?
What filtration system does Dwell BALANCE use?
How does the wireless touch controller work?
How frequently do the filters need cleaning?
Have another question about BALANCE?
Speak with our team for guidance on your ventilation project.
Official Catalogues & Engineering Manuals
Download technical specifications, installation guides, and architectural wiring schematics directly from the official Dwell Air documentation repository.
Dwell Air Balance Product Brochure
Complete 8-page architectural guide detailing the balanced twin-motor principle, air balance physics, and comprehensive model technical sheets.
Dwell BALANCE 100, 150 & 200 Engineering Manual
Official technical manual covering chassis suspension, 4-duct horizontal installation, electrical wiring diagrams, and filter replacement steps.

Need help using these technical resources?
Discuss documentation and project coordination with our ventilation team.
India’s First Balanced Bathroom Ventilation Unit: Breathes Out, Breathes In Together
In the modern era of airtight construction with fixed aluminium and double-glazed windows, traditional exhaust fans only do half the job. When doors are closed, exhaust fans choke for lack of make-up air. When doors are open, they pull expensive conditioned air from your bedroom, sending electricity bills soaring. The Dwell BALANCE Series changes the equation: powered by twin synchronized DC centrifugal motors inside a single concealed ceiling cassette, it exhausts stale, humid air while simultaneously delivering purified, filtered outdoor fresh air—restoring perfect pressure equilibrium to your bathroom.
The Modern Window Dilemma
- The Choked Fan Phenomenon: With fixed aluminium windows and closed bathroom doors, exhaust fans pull against a vacuum, reducing air movement to near zero while doors stick shut.
- The Air Conditioning Penalty: If the door is left open for make-up air, the exhaust fan greedily sucks chilled air from your bedroom, overloading your air conditioner.
- Odor & Humidity Migration: Unbalanced pressure causes moisture and odors to whistle through gaps into adjoining walk-in wardrobes and hallways.
The Dwell BALANCE Solution
- Breathes Both Ways Simultaneously: Motor 1 pulls humid steam out while Motor 2 delivers filtered outdoor fresh air in, keeping room pressure perfectly balanced.
- Zero AC Load Penalty: Make-up air is sourced entirely from outside through dedicated ducting—your bedroom climate and air conditioning remain untouched.
- Purified Inflow: Outdoor air is stripped of dust, pollen, and PM2.5 particulates via a washable G4 pre-filter and high-efficiency HEPA filtration core.
Twin Synchronized DC Centrifugal Motors
Built with two dedicated, energy-efficient DC motors inside a single casing. Factory-tuned with an exhaust-led ratio (e.g. 230 m³/h extract vs. 180 m³/h supply on Balance 100), it maintains a slight controlled negative offset that prevents odors from escaping while ensuring smooth, continuous airflow.
Dual-Stage G4 Pre-Filter + HEPA Purification
Never pump raw outdoor pollution into your home. Incoming fresh air passes through a washable G4 coarse dust pre-filter and an integrated HEPA filter, trapping atmospheric dust, soot, and allergens before delivering purified air into your bathroom.
Sleek Wireless Touch Controller
Complete control without trenching bathroom marble. The included wireless digital controller features a sleek capacitive interface displaying real-time ambient temperature, WiFi connectivity, Smart automation, and 3-speed manual control.
Ultra-Slim Matte Black Ceiling Cassette
Engineered to disappear completely above the false ceiling. With casing heights as slim as 123 mm (Balance 100), it fits easily into shallow ceiling voids, replacing two separate machines, dual wiring, and cluttered ceiling cutouts with a single unified unit.
True Balanced Pressure Engineering
When a room cannot breathe in as fast as it breathes out, standard exhaust fans struggle against vacuum resistance. Dwell BALANCE synchronizes supply and exhaust volumes dynamically, eliminating door-sticking, gap-whistling, and unconditioned air backdrafts entirely.
Plan balanced ventilation for your property
Speak with our team about BALANCE ventilation for your space.
Where to Install the Dwell BALANCE Series
The Dwell BALANCE Series is the ideal ventilation core for residential and executive spaces built with modern fixed glass windows and sealed door systems.
Luxury Master En-Suite Bathrooms
Extracts shower steam from the wet enclosure while pumping fresh, tempered, and filtered air into the vanity area, keeping vanity mirrors fog-free and preventing humidity buildup.
Enclosed Walk-In Wardrobes & Dressing Suites
Continuous balanced ventilation prevents stagnant mustiness and moisture accumulation, protecting expensive designer clothing, leather accessories, and bespoke wooden millwork.
High-Rise Powder Rooms with Fixed Windows
In modern apartments with non-openable architectural facade windows, BALANCE provides independent fresh air intake and rapid odor clearance without needing window ventilators.
Executive Corporate Restrooms & VIP Lounges
Maintains superior indoor air quality and constant air replenishment for high-traffic office washrooms, private executive cabins, and boutique hospitality suites.
Find the right BALANCE model for your space
Get assistance selecting a model for your ventilation requirements.
How the 4-Duct Balanced Flow Operates
Dwell BALANCE integrates two independent centrifugal fan paths within an acoustically insulated galvanized steel chassis, connected to four dedicated duct collars.
Outdoor Fresh Intake
Draws clean, oxygen-rich outdoor air through an external weather louvre into the primary filter chamber.
Dual-Stage Purification
Incoming air passes through a washable G4 pre-filter and HEPA core, discharging purified fresh air into the room.
Targeted Stale Extraction
The exhaust blower pulls steam and stale air directly from high-humidity zones (shower cubicle and WC).
Exterior Discharge
Pressurized humid air is expelled outside through an independent exhaust duct with zero room backdraft.
Dwell BALANCE 4-Port Airflow Schematic
Discuss your balanced ventilation system
Talk with our team about supply, extraction, and duct planning.
Compare Technical Specifications by Model
All performance metrics are factory-tested at 220 V / 50 Hz. Select a model below to inspect detailed airflow, pressure, electrical, and dimensional ratings.
| Duct Spigots | 4 × Ø 100 mm (4" round ducts) |
|---|---|
| Exhaust Airflow (High / Low) | 230 m³/h (135.4 CFM) / 180 m³/h (106.0 CFM) |
| Fresh Air Supply (High / Low) | 180 m³/h (106.0 CFM) / 130 m³/h (76.5 CFM) |
| Exhaust Static Pressure | 210 Pa (High) / 110 Pa (Low) |
| Supply Static Pressure | 110 Pa |
| Acoustic Noise Level @ 3m | 30 dB(A) (Low) / 33 dB(A) (High) |
| Power Consumption (Hi / Lo) | 108 W / 86 W |
| Motors & Configuration | Twin DC Centrifugal Motors (Exhaust-led balanced design) |
| Filtration Stages | Dual Stage: Washable G4 Pre-Filter + HEPA Filter |
| User Interface | Sleek Wireless Touch Controller (Temperature, Smart, WiFi, 3-Speed) |
| Chassis & Finish | Heavy-Duty Galvanized Sheet Steel, Matte Black Finish (IP44) |
| Vertical Ceiling Void | Requires from 150 mm ceiling plenum clearance (Body Height 123 mm) |
| Net Unit Weight | 17.9 kg |
| Duct Spigots | 4 × Ø 150 mm (6" round ducts) |
|---|---|
| Exhaust Airflow (High / Low) | 550 m³/h (323.7 CFM) / 350 m³/h (206.0 CFM) |
| Fresh Air Supply (High / Low) | 350 m³/h (206.0 CFM) / 240 m³/h (141.3 CFM) |
| Exhaust Static Pressure | 240 Pa (High) / 160 Pa (Low) |
| Supply Static Pressure | 160 Pa |
| Acoustic Noise Level @ 3m | 33 dB(A) (Low) / 36 dB(A) (High) |
| Power Consumption (Hi / Lo) | 151 W / 124 W |
| Motors & Configuration | Twin DC Centrifugal Motors (Exhaust-led balanced design) |
| Filtration Stages | Dual Stage: Washable G4 Pre-Filter + HEPA Filter |
| User Interface | Sleek Wireless Touch Controller (Temperature, Smart, WiFi, 3-Speed) |
| Chassis & Finish | Heavy-Duty Galvanized Sheet Steel, Matte Black Finish (IP44) |
| Vertical Ceiling Void | Requires from 220 mm ceiling plenum clearance (Body Height 197 mm) |
| Net Unit Weight | 20.3 kg |
| Duct Spigots | 4 × Ø 200 mm (8" round ducts) |
|---|---|
| Exhaust Airflow (High / Low) | 1,200 m³/h (706.3 CFM) / 800 m³/h (470.9 CFM) |
| Fresh Air Supply (High / Low) | 800 m³/h (470.9 CFM) / 550 m³/h (323.7 CFM) |
| Exhaust Static Pressure | 320 Pa (High) / 270 Pa (Low) |
| Supply Static Pressure | 270 Pa |
| Acoustic Noise Level @ 3m | 41 dB(A) (Low) / 45 dB(A) (High) |
| Power Consumption (Hi / Lo) | 240 W / 186 W |
| Motors & Configuration | Twin DC Centrifugal Motors (Exhaust-led balanced design) |
| Filtration Stages | Dual Stage: Washable G4 Pre-Filter + HEPA Filter |
| User Interface | Sleek Wireless Touch Controller (Temperature, Smart, WiFi, 3-Speed) |
| Chassis & Finish | Heavy-Duty Galvanized Sheet Steel, Matte Black Finish (IP44) |
| Vertical Ceiling Void | Requires from 270 mm ceiling plenum clearance (Body Height 247 mm) |
| Net Unit Weight | 24.5 kg |
Dwell BALANCE Master Range Comparison (High-Speed Baseline)
| Model | Spigots | Exhaust Airflow | Supply Airflow | Static Pressure | Noise @ 3m | Power | Net Weight |
|---|---|---|---|---|---|---|---|
| BALANCE 100 | 4 × Ø 100 mm | 230 m³/h (135 CFM) | 180 m³/h (106 CFM) | 210 Pa | 30–33 dB(A) | 108 W | 17.9 kg |
| BALANCE 150 | 4 × Ø 150 mm | 550 m³/h (324 CFM) | 350 m³/h (206 CFM) | 240 Pa | 33–36 dB(A) | 151 W | 20.3 kg |
| BALANCE 200 | 4 × Ø 200 mm | 1,200 m³/h (706 CFM) | 800 m³/h (471 CFM) | 320 Pa | 41–45 dB(A) | 240 W | 24.5 kg |
Need help choosing a BALANCE model?
Our team can assist with airflow requirements and model selection.
Casing Dimensions & Mounting Footprint
Verify unit dimensions, mounting bracket bolt centers, and ceiling void heights prior to false ceiling framing.
| Overall Body Length (L) | 875 mm |
|---|---|
| Bracket Center Pitch (L1) | 845 mm (M8 drop rod bolts) |
| Overall Chassis Width (W) | 703 mm |
| Core Width between Spigots (W1) | 420 mm |
| Unit Height (H) | 123 mm (Ultra-slim profile) |
| Collar Height (H1) | 93 mm |
| Spigot Spacing Center-to-Center (D) | 583 mm |
| Duct Spigot Outer Diameter (G) | Ø 100 mm (4") |
| Minimum False Ceiling Clearance | from 150 mm vertical plenum depth |
| Overall Body Length (L) | 875 mm |
|---|---|
| Bracket Center Pitch (L1) | 845 mm (M8 drop rod bolts) |
| Overall Chassis Width (W) | 673 mm |
| Core Width between Spigots (W1) | 420 mm |
| Unit Height (H) | 197 mm |
| Collar Height (H1) | 167 mm |
| Spigot Spacing Center-to-Center (D) | 583 mm |
| Duct Spigot Outer Diameter (G) | Ø 150 mm (6") |
| Minimum False Ceiling Clearance | from 220 mm vertical plenum depth |
| Overall Body Length (L) | 875 mm |
|---|---|
| Bracket Center Pitch (L1) | 845 mm (M8 drop rod bolts) |
| Overall Chassis Width (W) | 700 mm |
| Core Width between Spigots (W1) | 420 mm |
| Unit Height (H) | 247 mm |
| Collar Height (H1) | 217 mm |
| Spigot Spacing Center-to-Center (D) | 544 mm |
| Duct Spigot Outer Diameter (G) | Ø 200 mm (8") |
| Minimum False Ceiling Clearance | from 270 mm vertical plenum depth |
Casing Measurements Matrix (All Dimensions in mm)
| Model | Length (L) | Pitch (L1) | Width (W) | Core (W1) | Height (H) | Collar (H1) | Spigot (D) | Duct (Ø) |
|---|---|---|---|---|---|---|---|---|
| BALANCE 100 | 875 mm | 845 mm | 703 mm | 420 mm | 123 mm | 93 mm | 583 mm | Ø 100 mm |
| BALANCE 150 | 875 mm | 845 mm | 673 mm | 420 mm | 197 mm | 167 mm | 583 mm | Ø 150 mm |
| BALANCE 200 | 875 mm | 845 mm | 700 mm | 420 mm | 247 mm | 217 mm | 544 mm | Ø 200 mm |
Ceiling Slab Suspension & Dimension Callouts
Coordinate BALANCE with your installation
Get assistance with installation space, duct connections, and maintenance access.
Frequently Asked Questions
Clear engineering explanations on make-up air, bedroom air conditioning loads, filter maintenance, and controller operation.
Why doesn't a standard exhaust fan work properly in modern bathrooms?
How does Dwell BALANCE save air conditioning and heating costs?
Will bathroom odors drift into the bedroom?
What filtration system does Dwell BALANCE use?
How does the wireless touch controller work?
How frequently do the filters need cleaning?
